Zipper Repair Station

European Union, CISUTAC, 2023

How can we make circularity in fashion more accessible to both brands and consumers?


As a proud member of the EU-co-funded CISUTAC project for textile circularity, we used our insight into the current textile value chain to identify a key point of optimisation: zipper repair. A small, ubiquitous component that can render a garment functional or broken, the zipper is often deemed too complex or costly to repair, especially on lower value goods, leading to high instances of waste.

To address this, we set about designing processes and tools to facilitate the quick and easy repair of zippers. The outcome was Rezip: a modular zipper-repair workstation, developed with our partner STAM, that combines smart automation, hand-held tools and an intuitive interface to guide streamlined zipper repairs of apparel and sporting goods in 10 minutes.

01

Understanding the problem.


As the production and consumption of textile products continue to grow, so too does their impact on the environment, in large part due to a lack of material repair, reuse and recycling measures. For a component as complex and variable as the zipper, particularly in lower to mid-price-point apparel, up to now, the price and effort of traditional repair often outweighed the value of the product.

95%

95% of those clothes could have been reused or repaired. But only 1% is recycled into new clothes.

40min

The average time it takes to repair a broken zipper: A labour intensive task that requires a skilled worker.

02

Optimizing repair.

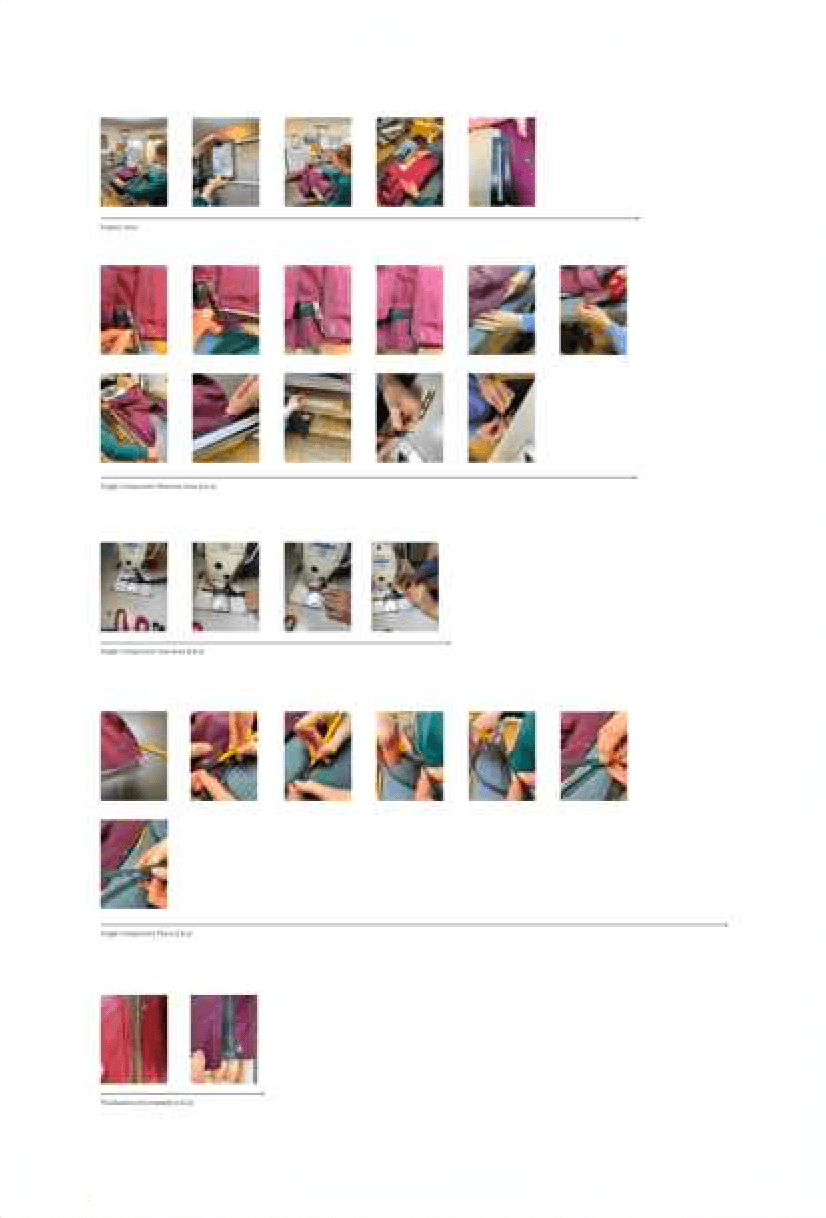

In order to increase the feasibility of zipper repair, it was important to adapt not only the tools but the repair approach itself. Where traditional repair requires an opening of the seams, we came to a streamlined methodology that applies the zipper from the above and below. This reduces both the time required to complete a repair and the operational complexity – making it easier for more people to perform the repair.

4x

Our system reduces the repair time to 10 minutes. 4 times faster than the average repair.

03

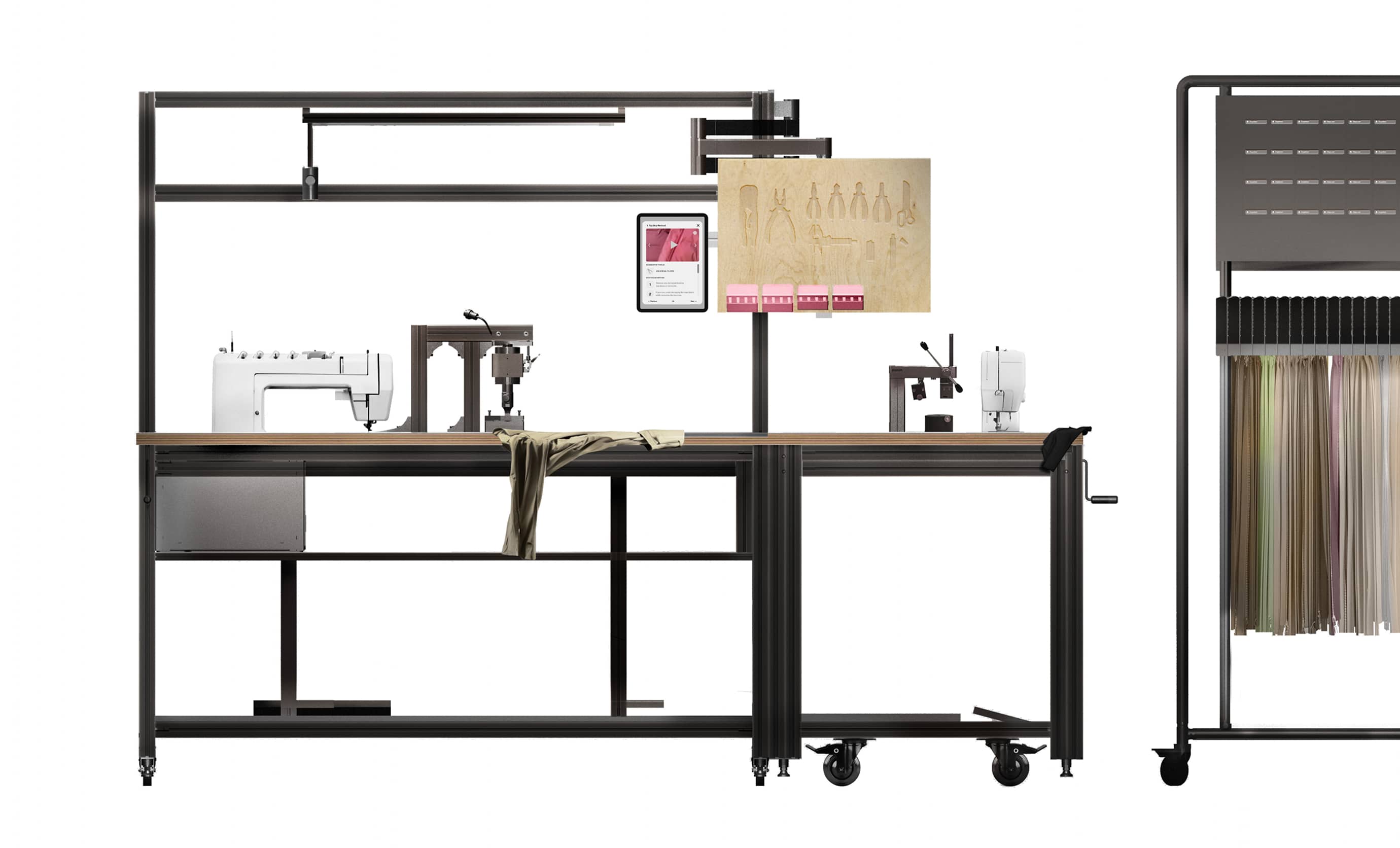

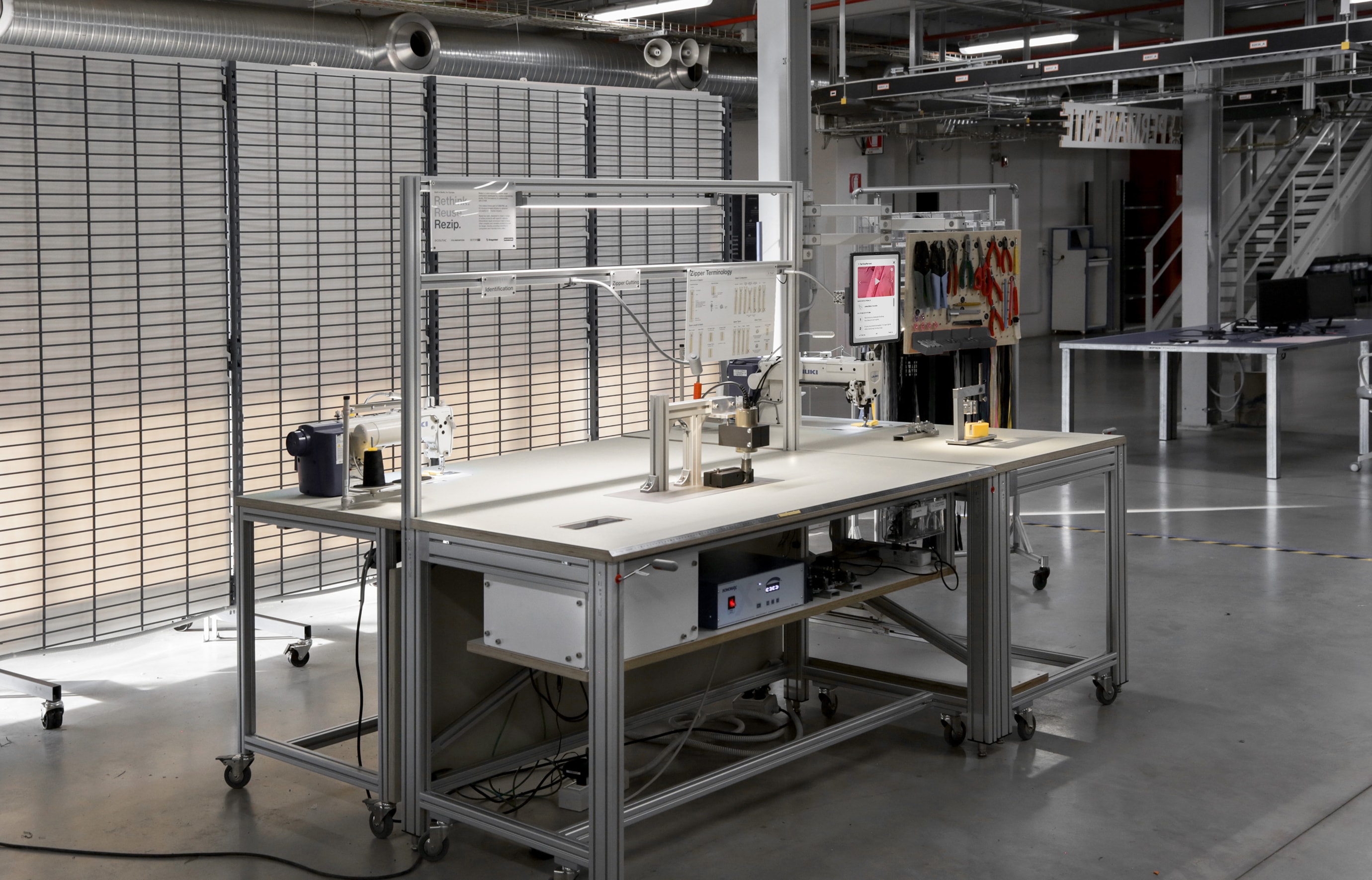

The Rezip station.


As scalability remains a huge barrier to widespread adoption of circular services, it was important to us to focus our solution on convenience, ease of use and an accessible price point.

All tooling was either selected, designed or developed to be easily used, replicated and integrated into existing processes and thereby established as an essential step of the supply chain.

04

Built to be rebuilt.

As scalability remains a huge barrier to widespread adoption of circular services, it was important to us to focus our solution on convenience, ease of use and an accessible price point. All tooling was either selected, designed or developed to be easily used, replicated and integrated into existing processes and thereby established as an essential step of the supply chain.

05

Guided repair.

A huge aspect of making our station accessible was making the new tools and processes easy to learn. To this end, we developed a digital UI that guides users from the zipper recognition and spare part finding, through to the individual repairs while collecting important product data and documentation for optimising the process further.



Built to accommodate a user base of varying skill levels, the interface provides both a step-by-step guide for the beginner or community user and a freer system for the veteran tailor.

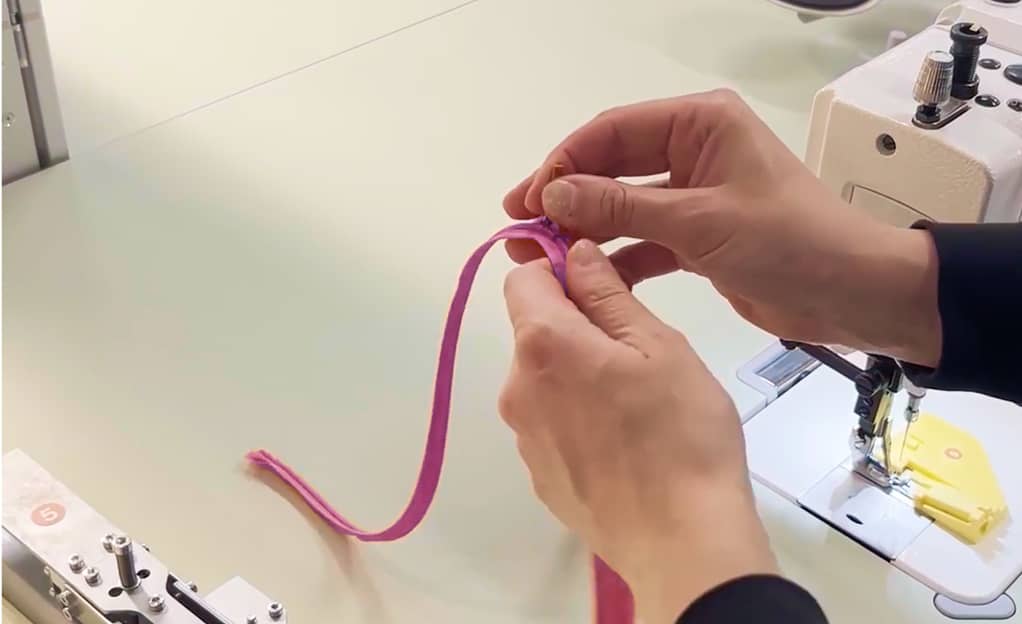

Watch a zip being repaired in 10 minutes.

How-to guide to Rezip

00:00

00:00

Key Components

Handheld tooling


Color-coded basic pliers

Quick-switch, crimping pliers with customized die sets built on existing tools

Tape-cutting tool

Chain-cutting tool

Measurement aids

Integrated Tooling


Sew-on-Garment sewing guide

Linear Fold sewing guide

Sewing machine quick-switch mechanism

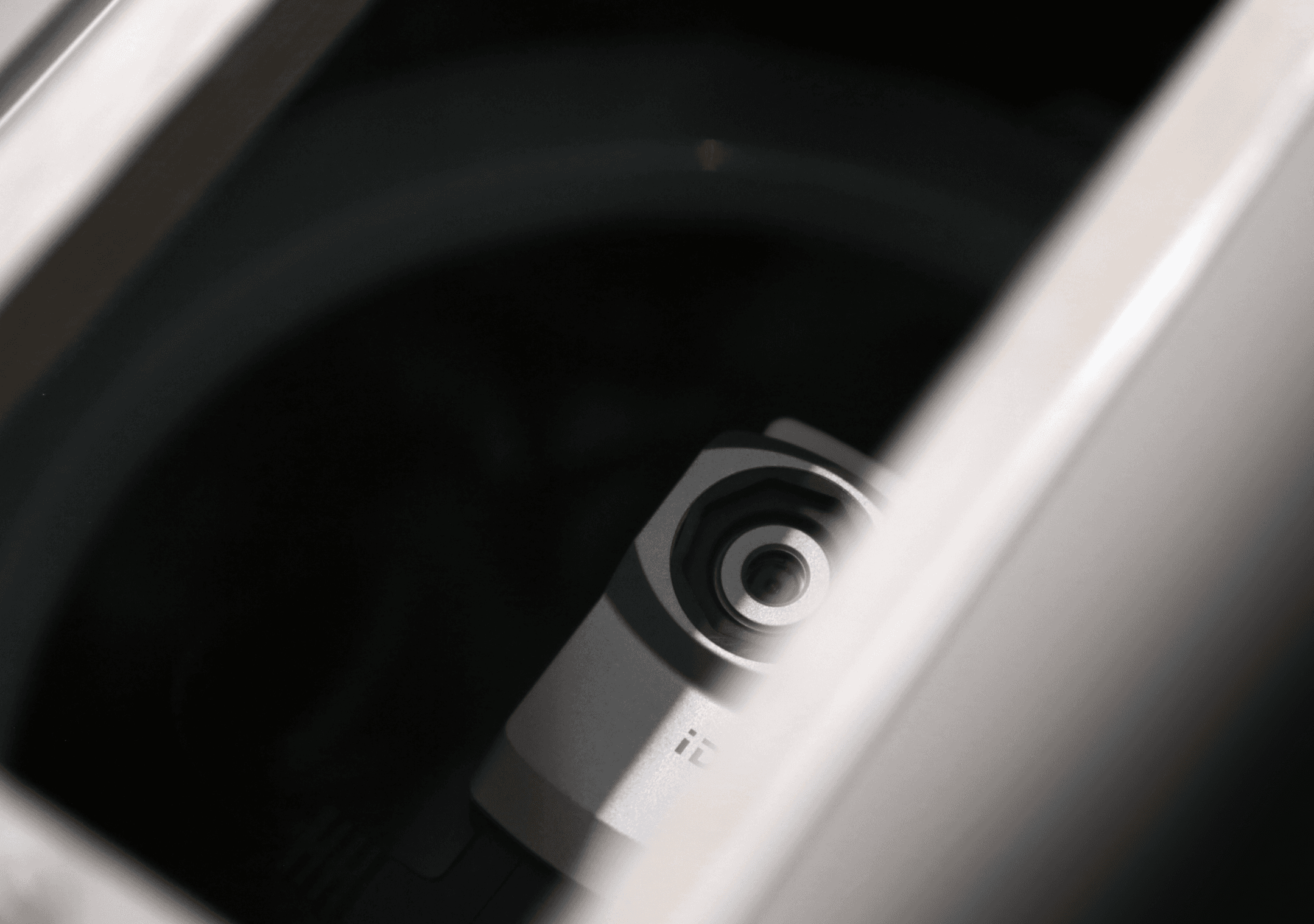

Integrated zipper analysis tool (in collaboration with STAM)

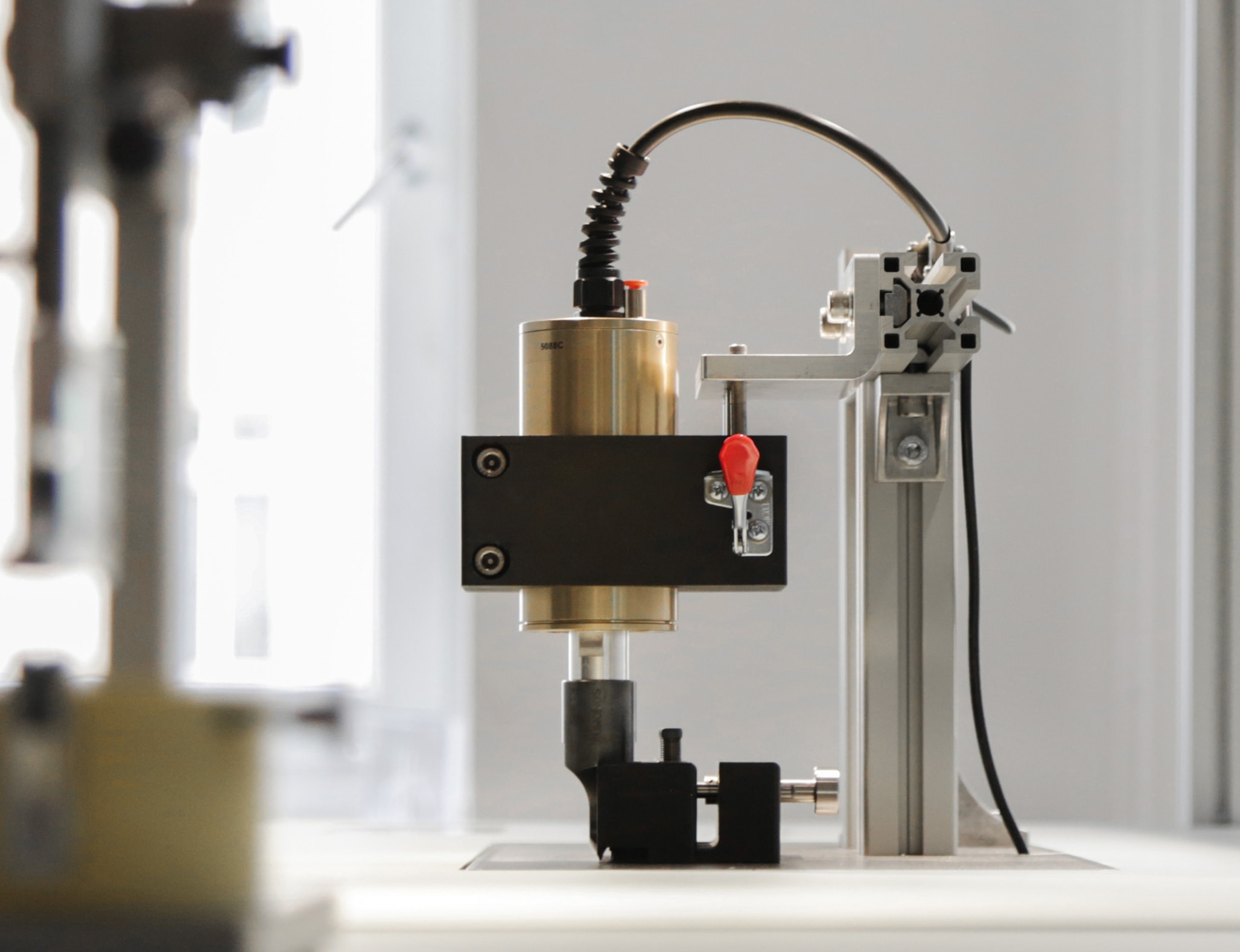

Movable press with quick-switch mechanism

Fold-positioning aid for zipper configuration

Structural Hardware

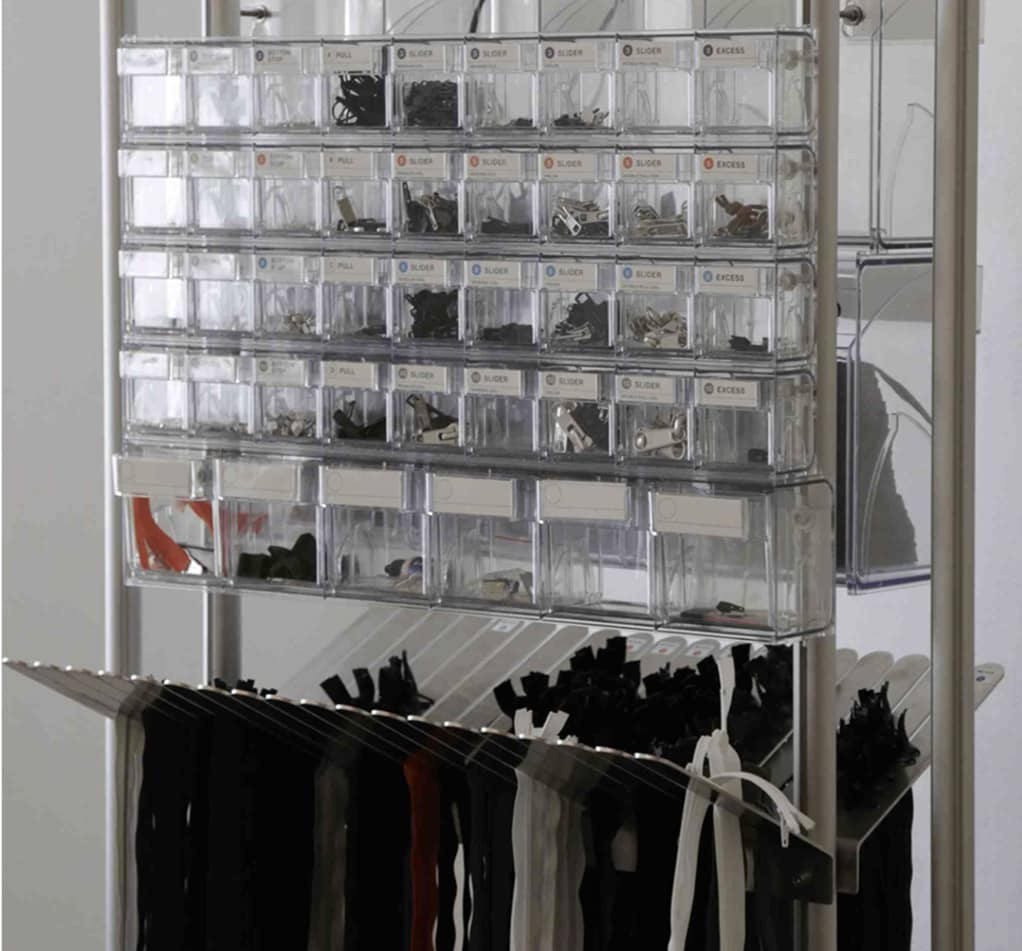

Moveable stock rack including zippers and single replacement components

Adjustable table height and tooling board

Ergonomic positioning

Digital Layer


Integrated zipper analysis tool (in collaboration with STAM)

Custom-built app for step-by-step operator guidance and data collection


“Each zipper we mend is a stitch in the larger tapestry of circularity. Towards transforming fashion culture into something sustainable and genuinely accessible.”

– Adrien Hobt, Managing Director at Gentle Systems

Partners

Reflection

As the demand for recycling post-consumer textile waste continues to grow, we see the units becoming increasingly valuable to stakeholders across the textile value chain – from recyclers to collectors and fashion brands looking to galvanize their recycling initiatives.
